Walkera WK1800 Firefighting Drones
Call us with any questions on 646-741-2067
Product Description

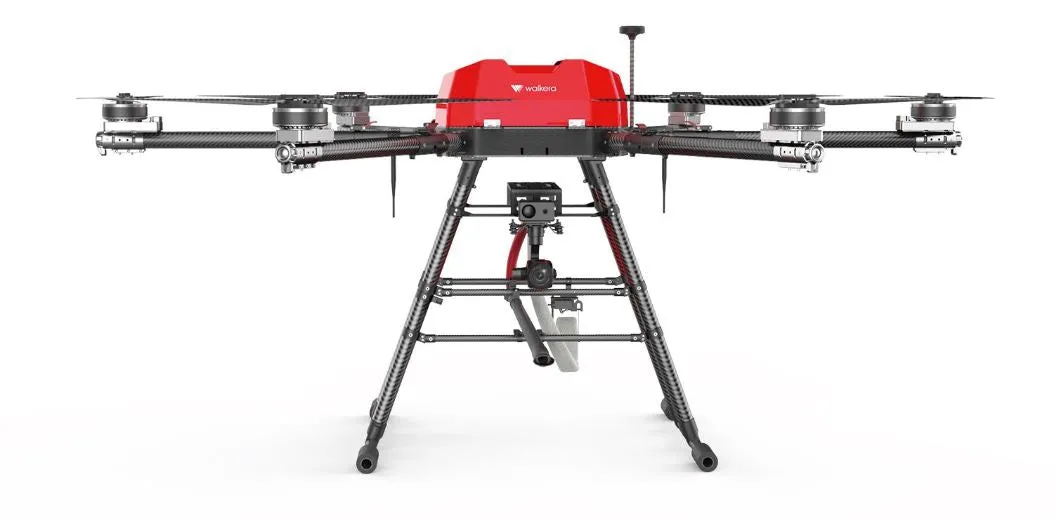

The WK-1800 six-axis fire-fighting drone has a large load capacity, strong wind resistance and higher dispersing accuracy, it is designed for dry powder spraying, hose mooring and vertical throwing of dry power. Portable folding body design, short startup time, can quickly reach the high-rise fire scene. Supports mounting a variety of devices, including 30x zoom camera, dry powder fire extinguishing tank, dropping fire extinguishing bomb, sprinkler, megaphone etc.
- Six-axis loading : six loading design, improve flight power
- 30X Zoom Camera: distance monitoring, can observe all conditions of the disaster
- Lidar Ranging : Double protection of obstacle avoidance and ranging
- Folding arm design: Innovative barrel design
- 50 Minutes of Battery Endurance: Smart battery, long flight time
- Rugged Performance IP43: Adopt closed modular design
Fire Suppression Tank
- Net dry powder content : 12kg, total weight :19kg
- Filling pressure : 1.2MPa
- Electronic quick opening method
- Powder spray tube: carbon fiber material
- Length : Expanded 4.33m (the shortest can be retracted to 1.61m)
Hose Spray Module
- Can be connected to fire hydrants and fire trucks for high pressure water supply
- Spray pipe material: carbon fiber
- Telescopic length: expanded length 3.04m (the shortest can be retracted to 1.61m)

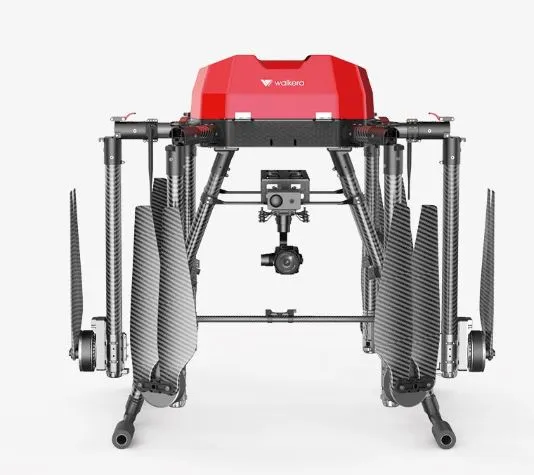

Folding Design
Innovative barrel design
The WK-1800 arm adopt a six-axis vertical structure design, which is compact and firm. After being folded, the whole machine takes on a barrel shape, which is convenient for daily transportation and assembly while ensuring the structural strength requirements, reducing the occupied area of the aircraft, reducing the difficulty of packing and saving assembly time for staff, and greatly reducing the requirements for transportation tools.
Unfolding
Smart Battery, Long fight time
Large-capacity battery and built-in intelligent power management system greatly enhance the safety during flight. The standard large-capacity battery can last up to 50 minutes in a single flight. The APP has built-in low-voltage alarm and power management, greatly improving battery life and work efficiency, ensuring stable flight of the drone, and better escorting your flight.
30X Zoom Camera
4k Picture quality
A 30x optical zoom camera is mounted as standard, and ultra-long-distance monitoring can observe all the details of the scene, which can effectively help formulate rescue plans. It can also be used in one machine for multiple purposes, and can mount different equipment according to different needs of customers, such as infrared thermal imaging cameras, low-light night visions cameras and other equipment.
Lidar Ranging
Environment awareness, intelligent obstacle avoidance
Environment awareness, intelligent obstacle avoidance
Using laser radar technology, the intelligent obstacle avoidance system created by high-precision sensors, laser ranging up to 100 meters, can identify obstacles of 3-15 meters (adjustable) in the front direction and brake and decelerate to prevent misuse. The dual protection of obstacle avoidance and ranging makes your flight safer and increases the probability of rescue.
Customize APP
Simple operation and handy
For the special needs of firefighting and rescue, our APP specially designed for WK-1800 firefighting drones simplifies operations and makes operations easier. The monitoring platform is convenient for operators to count and supervise check the progress of the operation in real time, and plan the operation route.
real-time display of operating parameters and flight parameters, etc.
Customize system
The customized Android system with the deeply optimized WKDrone-ZHUN APP can get rid of the interference of operation jams and complicated information when using ordinary mobile devices, making the operation more efficient and safe, at the same time, the system also supports the installation of other Android apps to achieve more Video editing and sharing functions.
WK-1800 dedicated remote control with screen for fire fighting drone
For the needs of firefighting and rescue, we specially designed the remote control with screen for ZHUN firefighting drones. The remote control with screen combines portability and highlight display. It can also present clear images under strong direct light. Combined with the built-in APP, let you get rid of the interference of complicated information when using ordinary mobile devices, and work more easily and efficiently.
Highlight display
The remote control integrates a 7.86-inch 2K high-brightness display with a maximum brightness of 2000 cd/m^2, which is about twice that of ordinary mobile devices. It is still clearly visible under strong direct light, making the operation safer and more reliable.
HD Video transmission
The remote control with screen is equipped with advanced 2.4G and 5.8G dual-frequency long-distance transmission system, wavelength, strong anti-interference ability, effective control distance up to 6KM, stable and reliable transmission.
Application Scenario
- Vertical Dropping fire extinguishing Bomb
- Fire Extinguishing Tank Module
- Marshalling
- Fire Hose Driving
Specification
Aerocraft
| Symmetrical motor wheelbase | 1900mm |
| Body size | Expand: 2070 × one thousand and eight hundred × 910mm (boom unfolded, blade folded); Fold: 1100 × nine hundred and fifty × 910mm |
| Maximum takeoff weight | 56.1kg |
| Paddle Blade | diameter × Pitch: 34 × 11.2inch； Single weight: 190g |
| electric machinery | KV value: 100rpm/V Stator size: 96 × 16mm |
| Electric regulation | Continuous current: 120A (good heat dissipation condition); Lithium battery: 6~12S; |
| Battery | Voltage: 45.6V; Capacity: 66000 mAh; Energy: 3009.6 Wh; Type: LiHV 12S; Discharge current: 25C |
| Maximum lifting speed | 5m/s |
| Maximum descent speed | 3m/s |
| Maximum horizontal flight speed | GPS mode: 5~10m/s (windless environment) adjustable; Cruise mode: 10m/s (windless environment); Attitude mode: 15m/s (windless environment) |
| Maximum pitch angle | 35° |
| Maximum rotation angular velocity | Pitch axis: 120 °/s, heading axis: 50 °/s |
| Maximum tolerable wind speed | 12m/s |
| Maximum flight altitude | 5000m |
| Hover accuracy (GPS) | Vertical: ± 0.5m, horizontal: ± 0.5m (when GPS positioning works normally) |
| Maximum endurance | 50 minutes |
PTZ
| size | one hundred and thirty-six × ninety-eight × 139mm |
| weight | 452g |
| input voltage | 12V |
| Stabilization system | 3-axis (pitch, roll, level) |
| Angle control accuracy | Static: ± 0.008 °; Dynamic: ± 0.02 °; Anti shake: ± 0.008 ° |
| Controllable rotation range | Pitch: - 110 ° to 60 °; Horizontal: ± 150 °; Roll: ± 10 ° |
| Maximum control speed | Pitch: 30 °/s; Horizontal: 30 °/s |
Reconnaissance camera
| Lens Pixel | 12 million |
| Focus time | 2 seconds |
| sensor | 1/2.3 SONY IMX117 CMOS |
| ISO Scope | Video: 100 ～ 3200; Photo: 100~1600 |
| Video recording resolution | 4K 30fps |
| Photographic resolution | three thousand eight hundred and forty × two thousand one hundred and sixty |
| focal length | 6.7-134.5mm |
| Zoom magnification | 30x optical zoom |
| Multiplying speed | About 2.0 seconds |
| Horizontal perspective | 59.8 °～ 3.0 ° (wide-angle - telescopic) |
| Close-up distance | 5000mm (wide angle - far view) |
| Video storage bitstream | 64Mbps maximum |
| Compression standard | H.264 / H.265 |
| Support file storage format | File system: FAT32; Picture format: JPG; Video format: MP4 |
| Supported memory card types | Micro SD card, supporting up to 128G, with transmission speed of Class10 or above or reaching UHS-1 rating |
Dry Powder fire extinguisher
| texture of material | HP295 |
| Filling Pressure | 1.2MPa |
| Total weight | 19kg |
| Installation method | Quick hanging type |
| Net content of dry powder | 12kg |
| Open mode | Electric control quick opening |
Dusting pipe
| texture of material | carbon fibre |
| length | Expand 4.33m (the shortest can be reduced to 1.61m) |
Specification of water hose
| diameter | 25mm |
| length | 100m |
| Maximum pressure | 2.0MPa |
Sprinkler pipe
| texture of material | carbon fibre |
| length | Expand 3.04m (the shortest can be reduced to 1.61m) |
