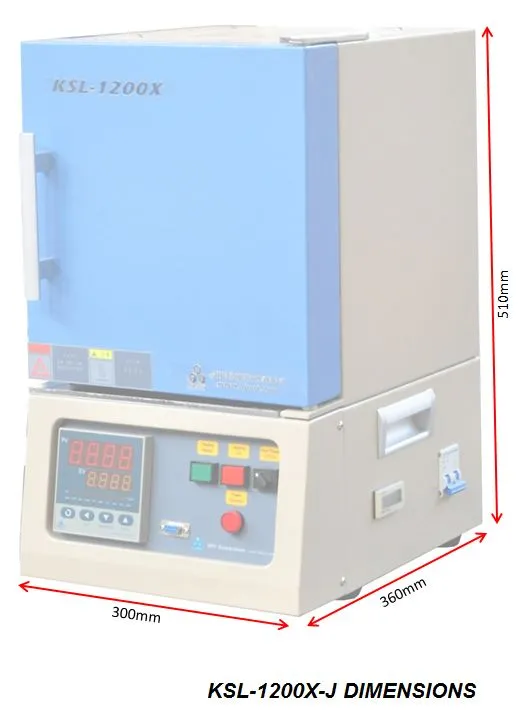

Structure
|
- High purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
- Heavy-duty double-layer structure with a cooling fan to keep furnace exteriors safe to touch.
- Doble layer steel case with forced-air cooling to ensure lower safer surface temperature.

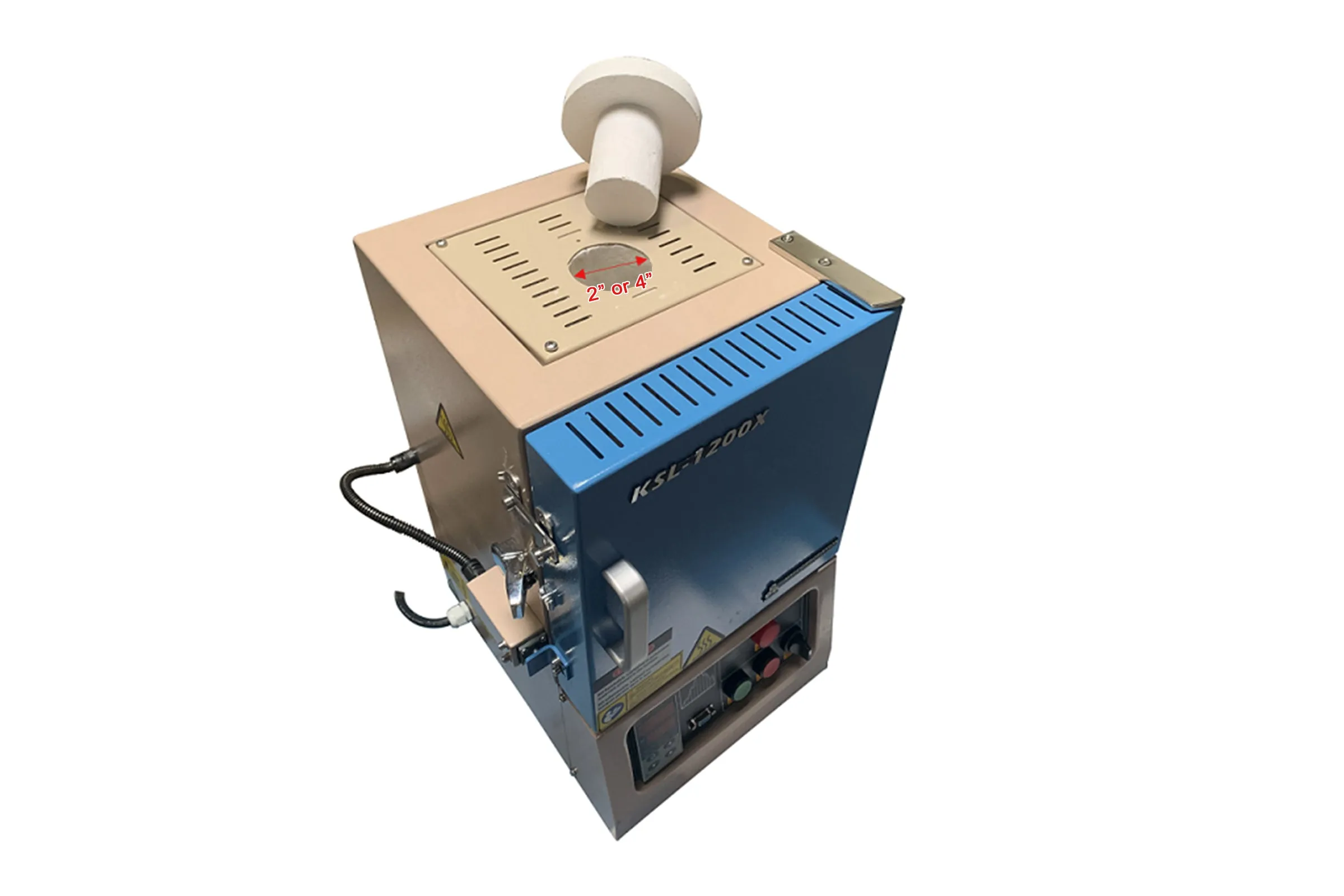

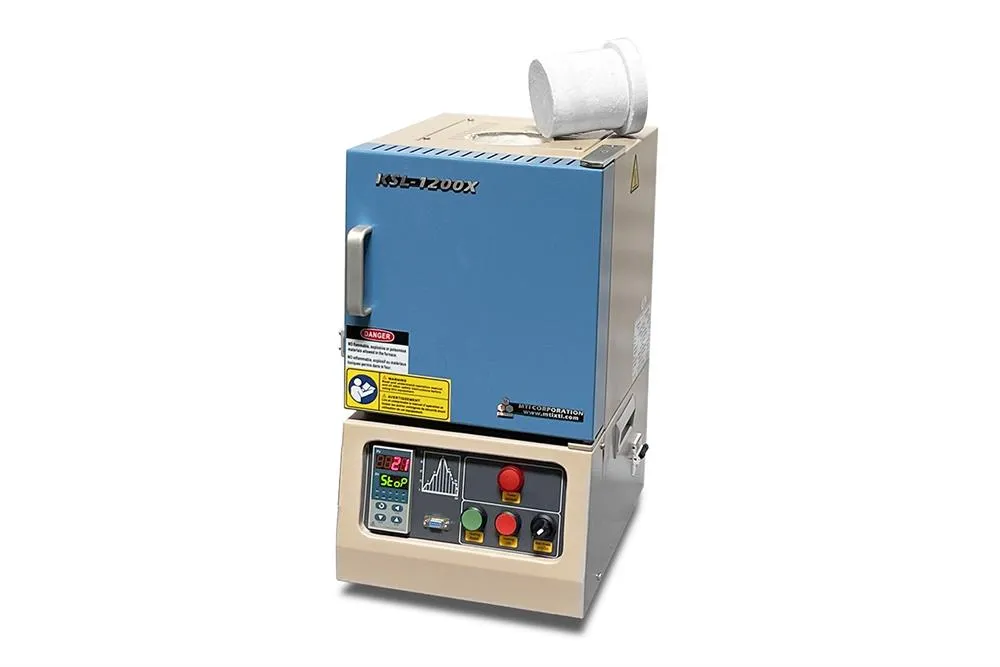

- One 2" or 4" Dia. hole is opened from the top of the chamber with a thermal insulation block

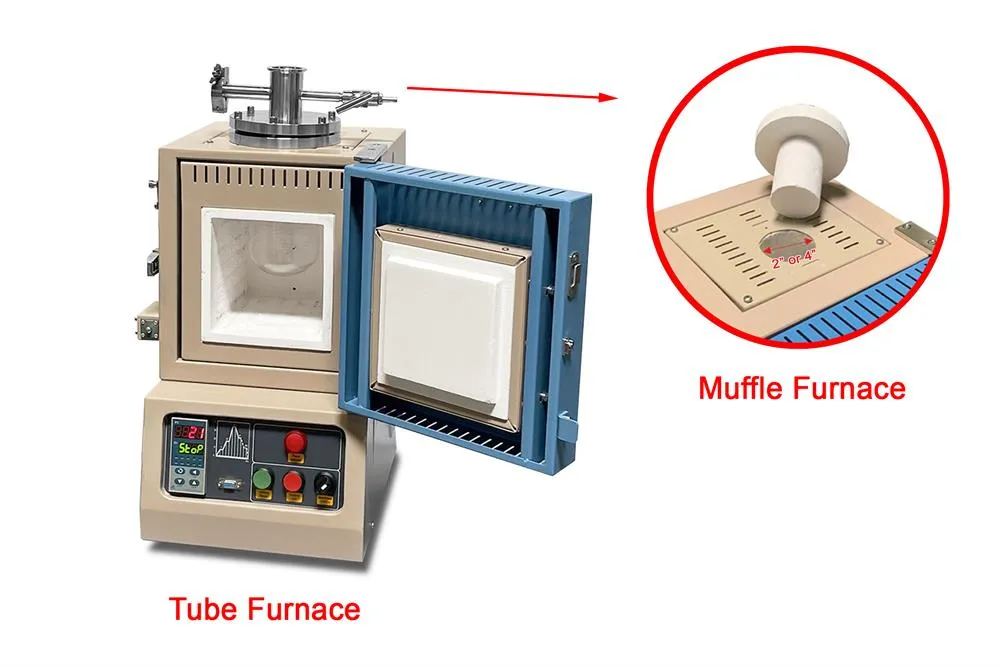

- When used as a tube furnace, a quartz tube with a flange will be inserted into the heating chamber.
|
|
Heating Chamber
|
- Dimensions: 150mm(D) x 155mm(W) x 180mm(H), ( 6"x6"x7")
- Capacity 4.2 Liter or 0.44 cubic ft
- Working Temperature: 100-1200 °C continuously in the air or inert gas. ( 1000 max if used in vacuum )
- Heating rate: 30°C/ min.
- Temperature Stability: /- 1.0 °C
-
thermocouple with Ceramic Sheath
|
|
Processing Tubes
Tube Installation
|
-
size: 50 OD x 44 ID x 263 L (mm)
-
size: 100 OD x 94 ID x 210 L (mm)
- KF flange.
- KF16 port is included for connecting a digital vacuum gauge (gauge is not included)
- 1/4" barbed fitting gas inlet and needle valve are included for connecting the gas tank
- You may need to order a vacuum valve (Pic. 1), the vacuum gauge (Pic. 2), bellow (Pic.3), or Multi-gas fitting flange (Pic. 4 showing an example of 80mm) and a complete system of turbopump (Pic. 5) as below:
Pic. 1Pic. 2Pic. 3Pic. 4Pic. 5
|
Temperature Controller
|
- The digital temperature controller is included.
- Proportional–integral–derivative control (PID control) and auto-tune function
- 30 segments programmed with ramping, cooling, and dwelling steps
- Built-in over-temperature alarm and thermocouple failure alarm
- /- 1 ºC temperature control accuracy
- Default DB9 PC communication port
|
Three-Electrode Configuration (Optional)
|
-
100 OD x 94 ID x 210 L (mm)
- Three copper electrodes (Ø2.38) with copper connectors for any type of electrode, up to 55A
- DN16KF port as gas outlet or vacuum.
- 1/4" compression tube fittings
- Max. vacuum: 10-2 torr by a mechanical pump or 10-5 by a turbo pump
- Max. pressure: 3 psig
- One alumina thermal block.
|
Temperature controller (optional)
|
- MTS02-Y Temperature control software kit (for YD518P series controllers) 15" laptop package is available at the options bar.
- Eurotherm temperature controller with /- 0.1oC accuracy is available at the extra cost
|
Power
|
- Voltage: 208 -240V Single Phase 50/60 Hz
- 2.5KW ( not suitable for running at 110V )
- Note Power cable is included but without a plug. The plug would have to be installed by the customer or click the link below the picture to choose a plug according to your country or your lab requirement
|
| Compliance |
- CE Certified
- NRTL (UL61010) or CSA certification is available upon request at extra cost.
|
Application Notes
|
- For a longer service life of the furnace, we recommend to not exceeding the heating rate of 10°C/min.
- The cooling rate should not exceed 10 °C /min either.
- Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with
- The heating module is easy to replace. Click pic left to order spare the Heating module for replacement
- If firing material releases vapor or smoke, please place the furnace into a fume hood.
|
